Performance

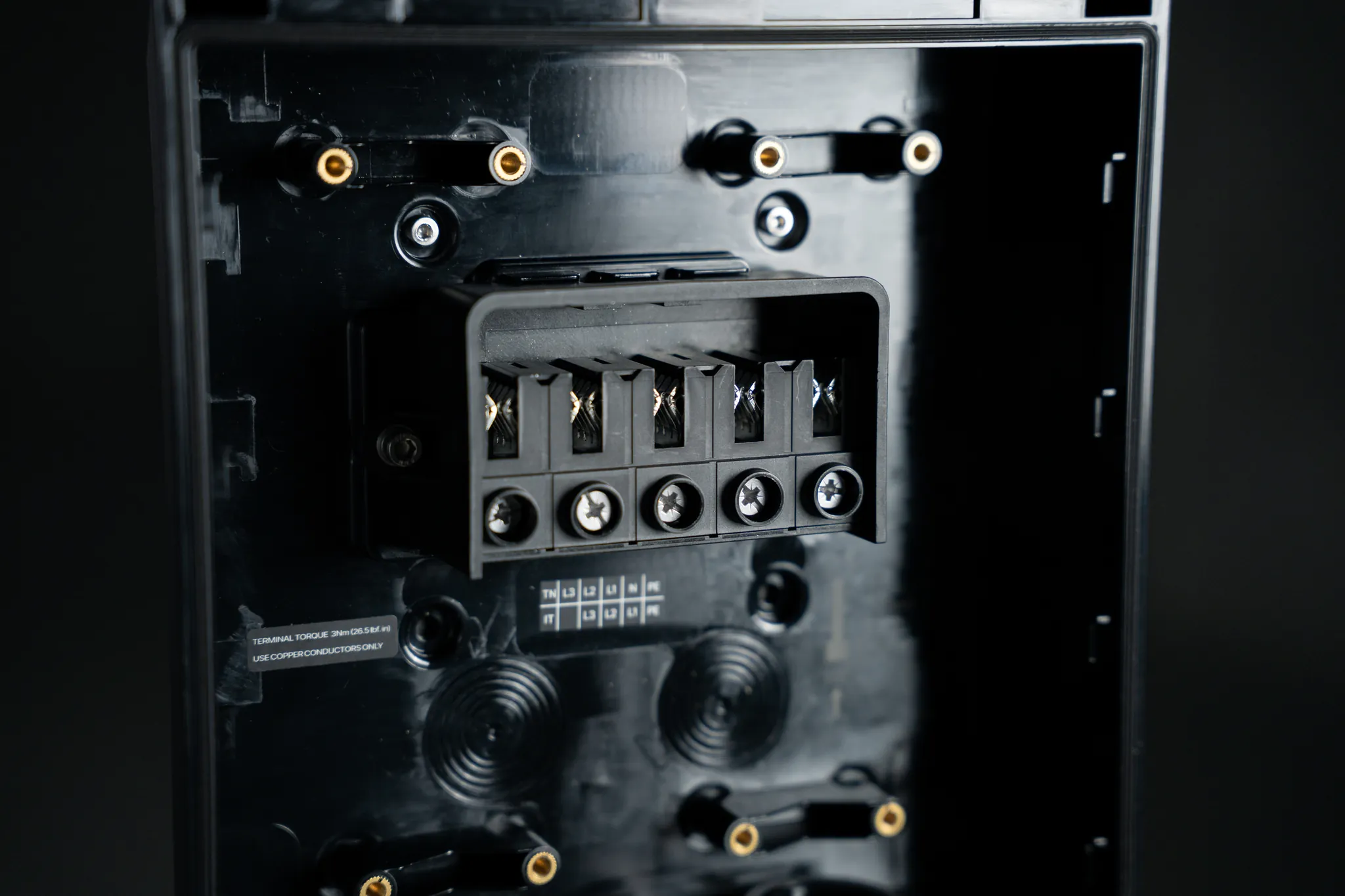

Charging Capacity1-phase or 3-phase, 6-32A (1.4-22kW), 3-to-1 phase switching via Plugchoice
ConnectorType-2 socket or socket with shutter

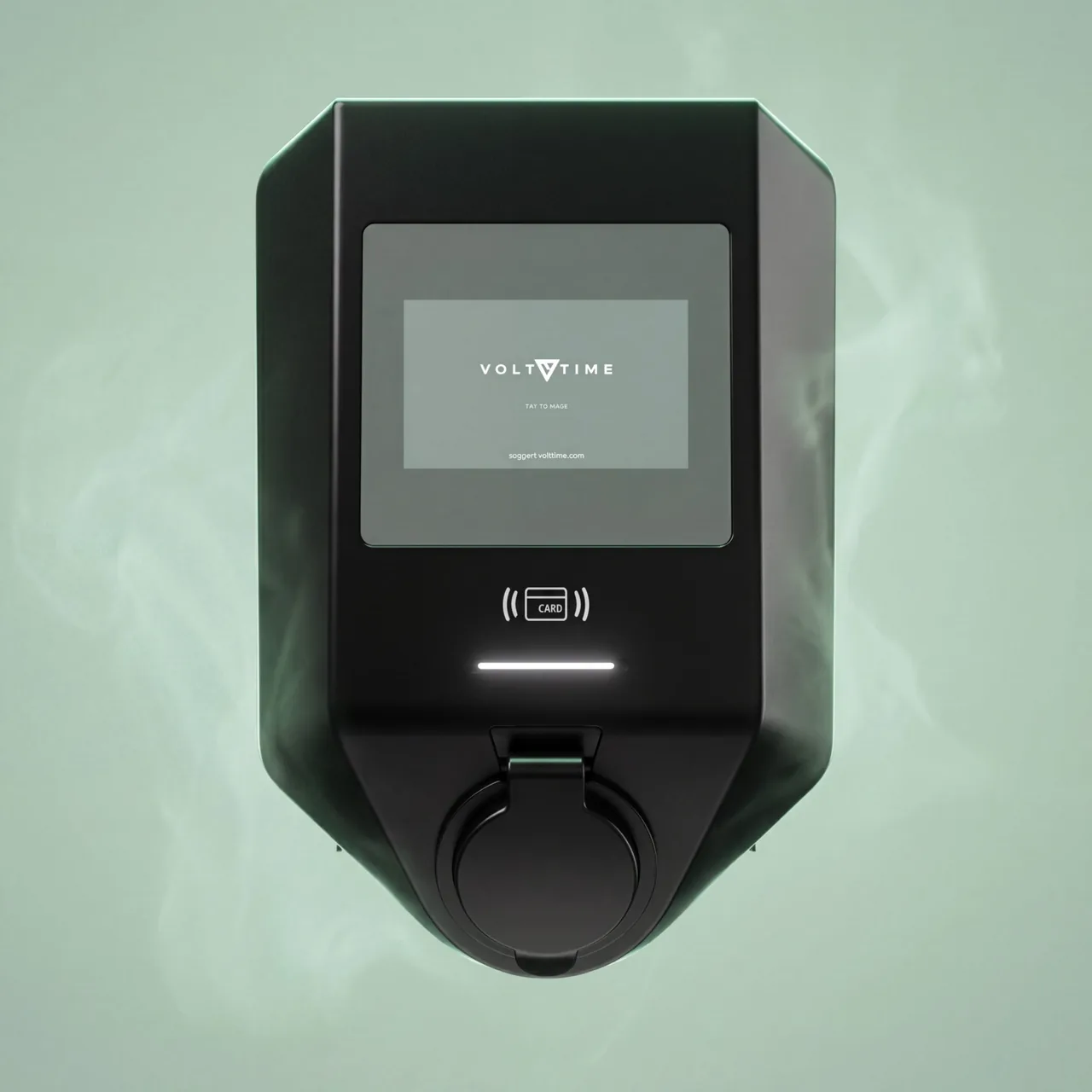

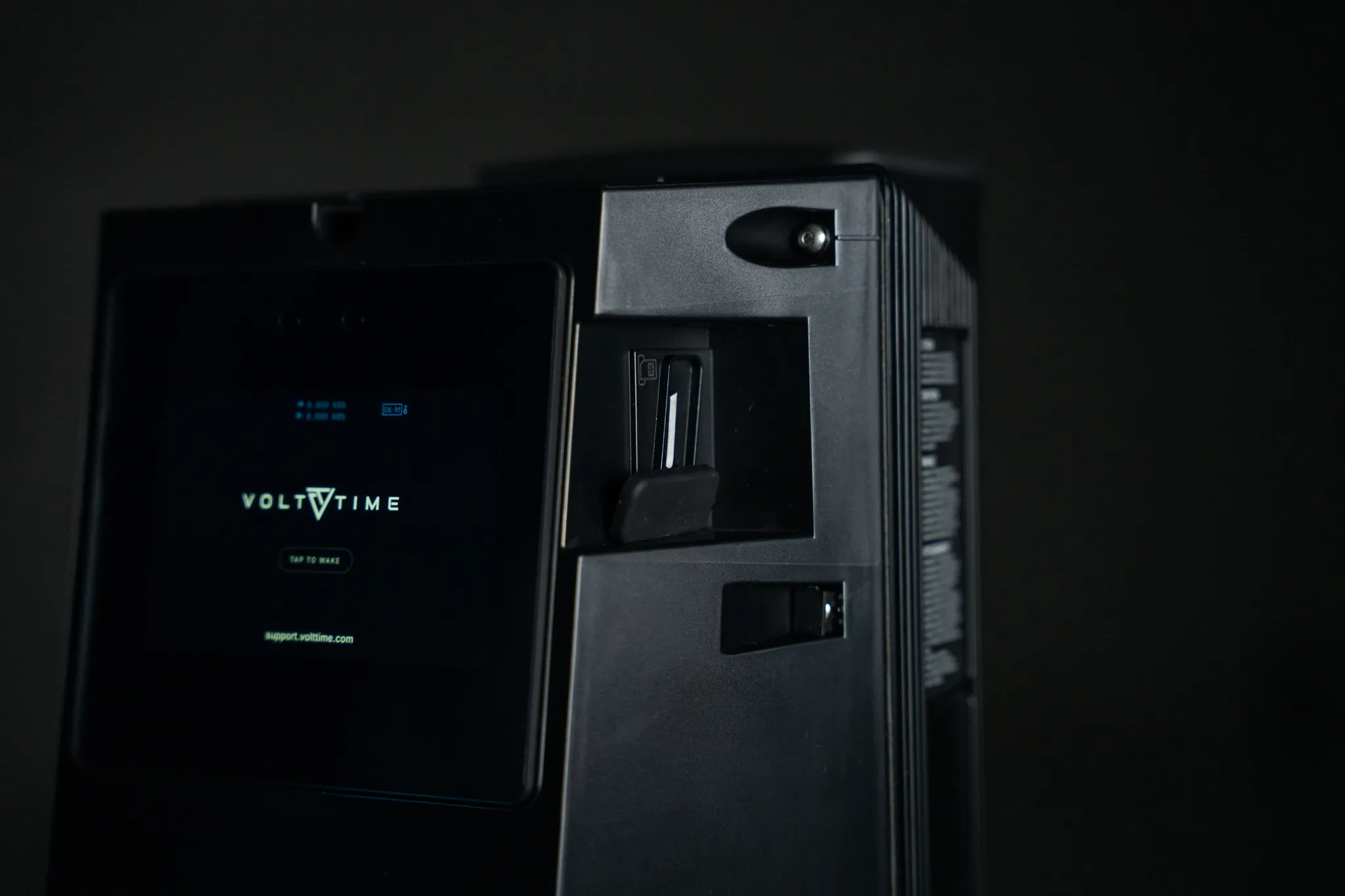

Energy MeterMID Class C 2014/32/EU (+/-0.5%) + Eichrecht, externally visible

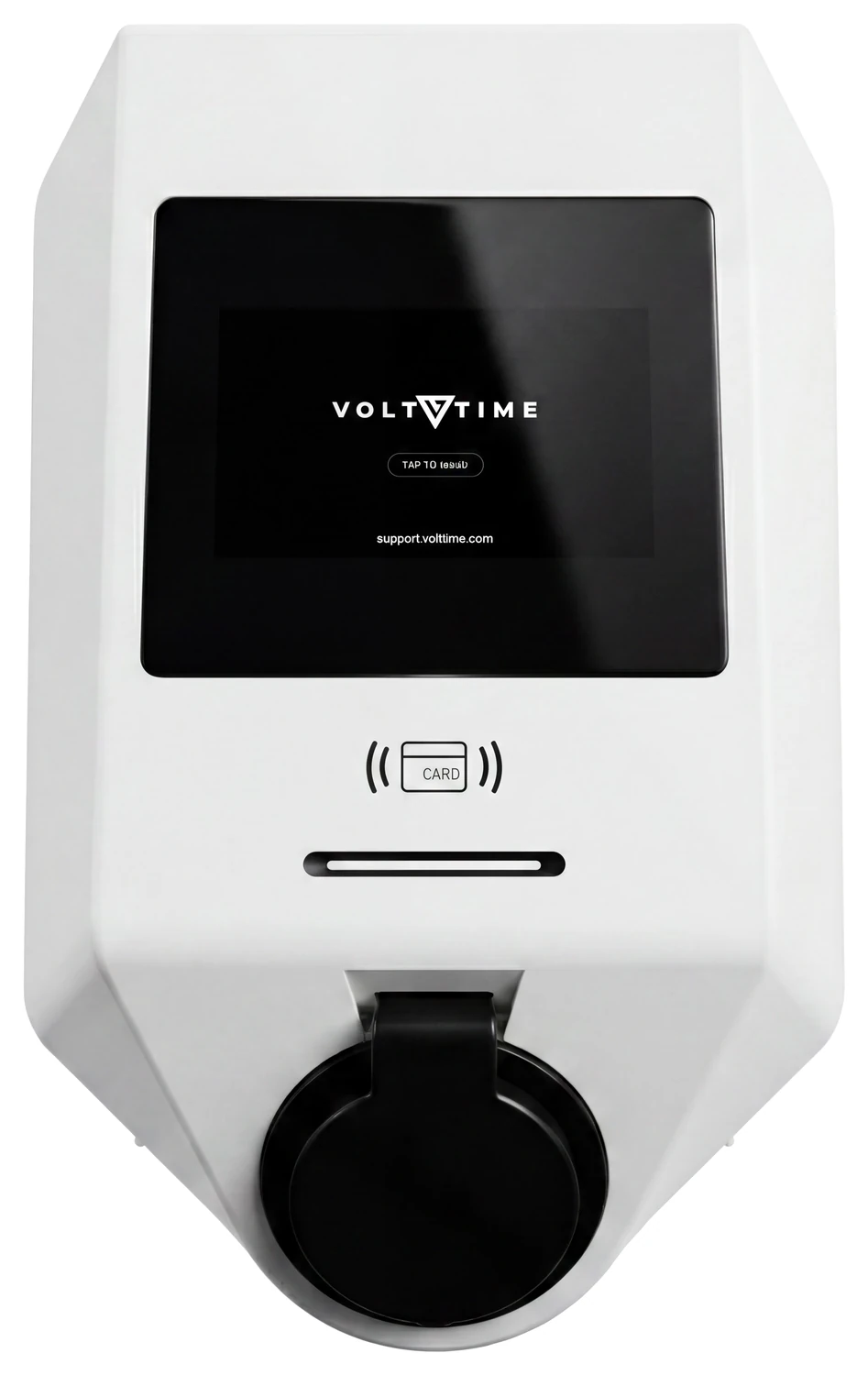

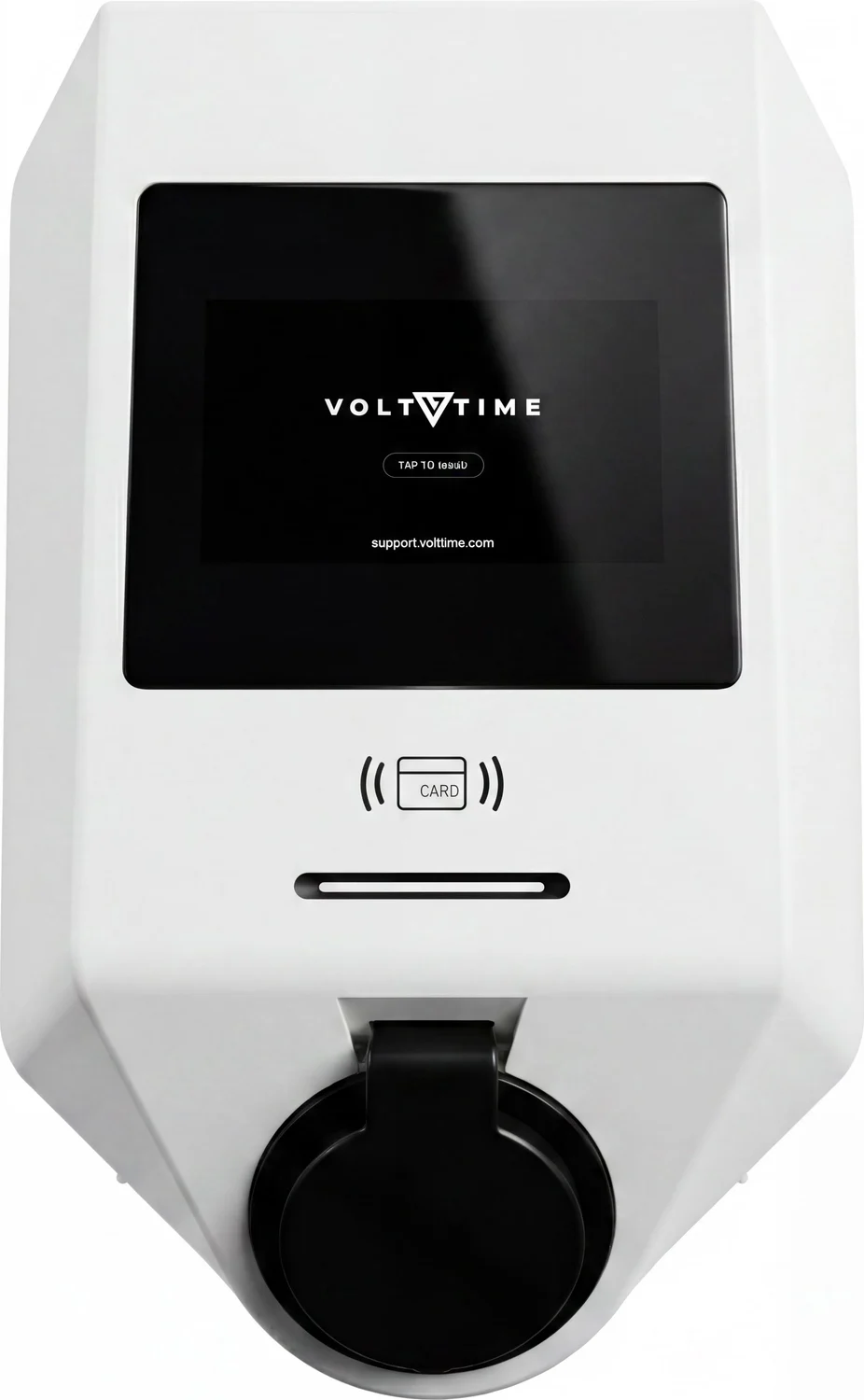

Display5-inch LCD touchscreen, configurable branding
Standby Consumption~5W
Connectivity
ProtocolOCPP 1.6j & 2.0.1 (OTA towards 2.1), REST API via Plugchoice
NetworkRJ45 Ethernet, Wi-Fi 6 (2.4/5GHz), Cat4 4G LTE + SIM (optional eSIM), Bluetooth, RS485
Site ScalingNo limit on chargers per site, load-managed by Plugchoice
V2G / Plug & ChargeISO15118-20 (V2G ready) and ISO15118-2/3 Plug & Charge

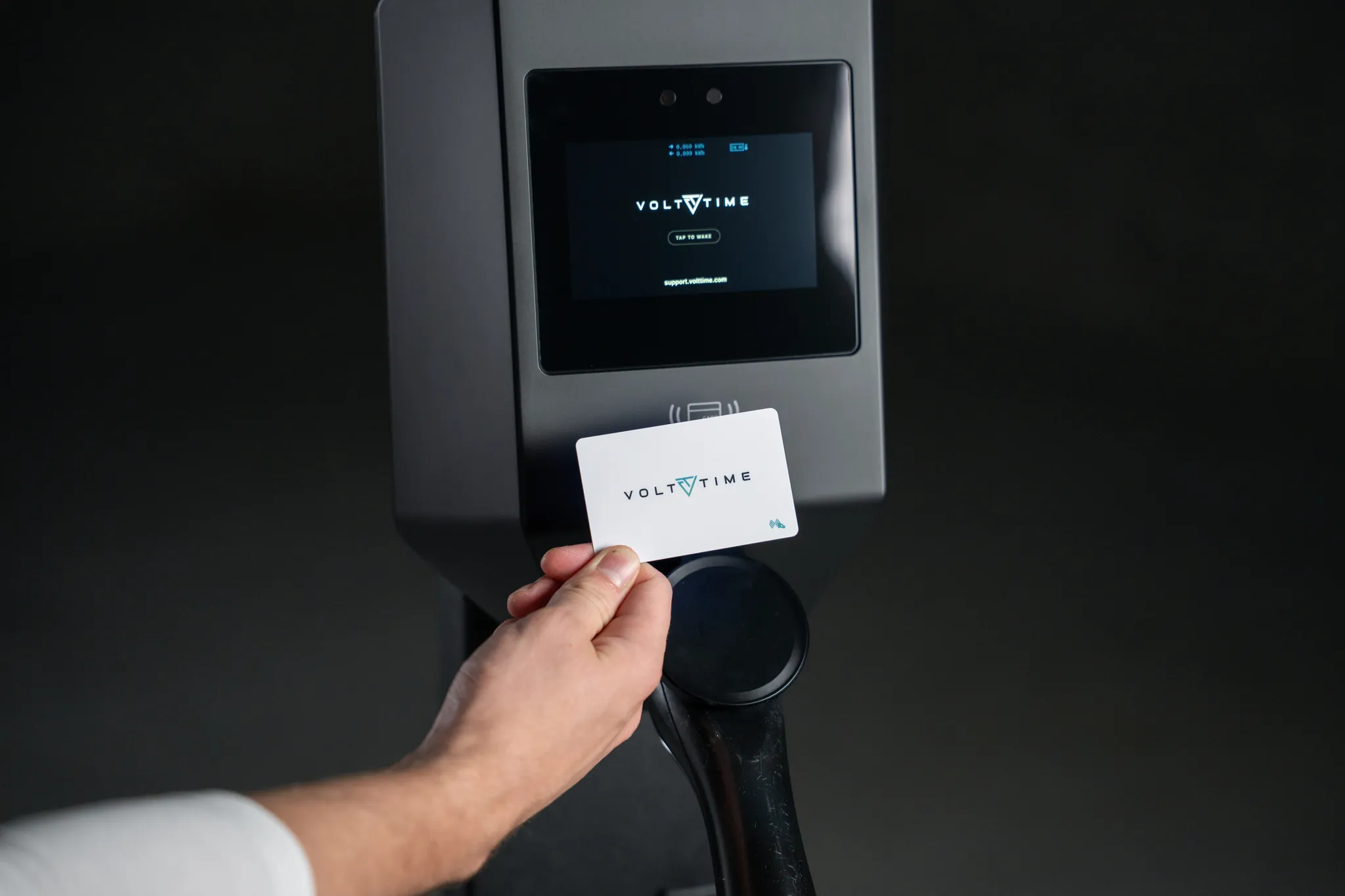

IdentificationNFC (AFIR), RFID/NFC reader (ISO 14443, MIFARE 13.56 MHz), Autostart
App & PortalPlugchoice app & web portal
Physical
Dimensions350 x 233 x 169 mm
Weight4.0 kg
ColoursJet Black, White

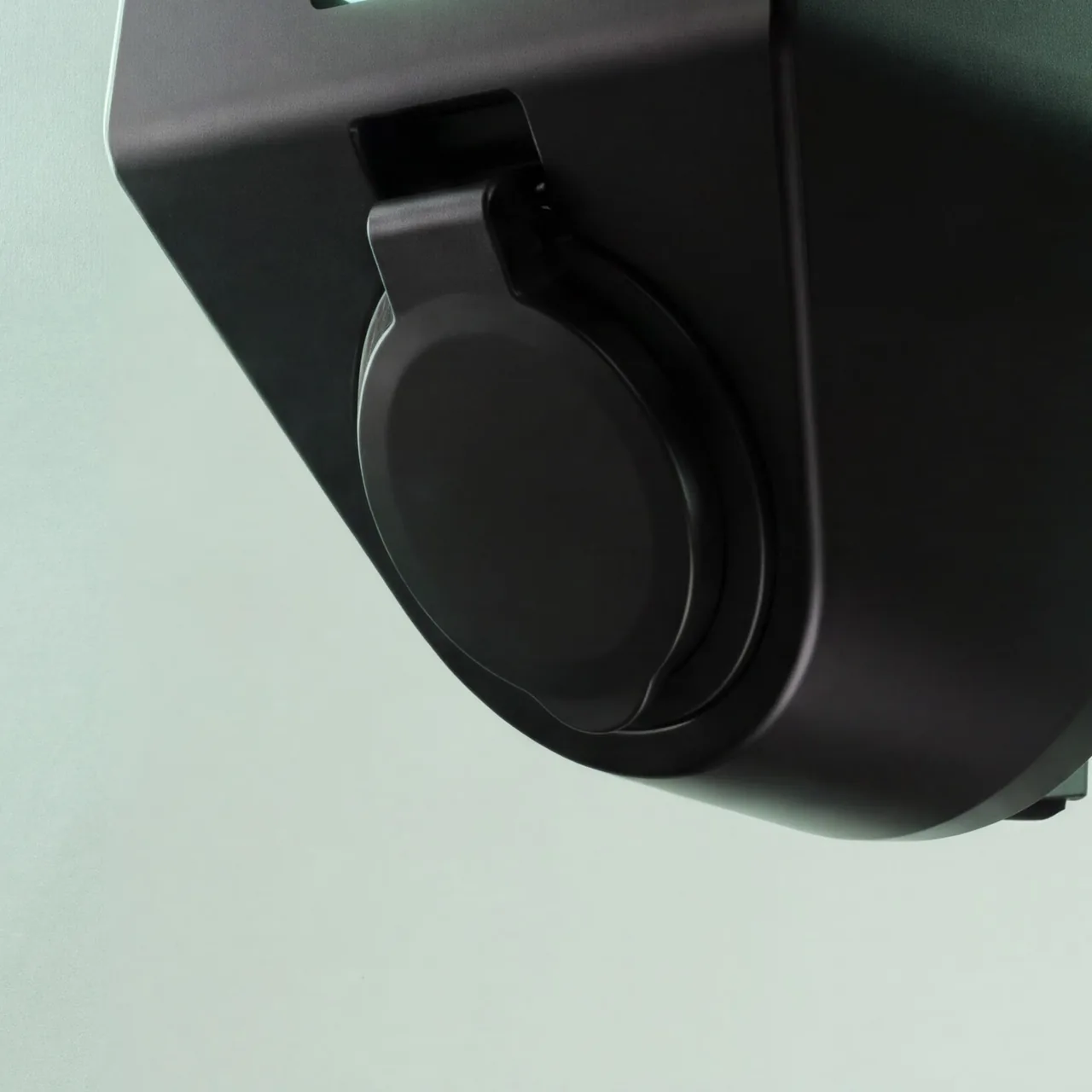

ProtectionIP65, IK10, no derating up to 55 degrees C
Operating Temp-40 degrees C to +55 degrees C
Mounting Height1 m above ground
Safety & Compliance
Residual CurrentBuilt-in 30mA AC / 6mA DC leakage detection (IEC 62955)
OverloadEN IEC-61851-1:2019, earth-fault protection, overvoltage cat III
Relay4-pole mechanically interlocking, 10kA peak withstand
Grid TypesTN, TT, IT
SecurityAnti-theft detection, permanent cable lock option, padlock bracket, TPM
Warranty36 months
